主要技術參數：Main Technical Parameters

可根據產品要求 特殊訂制設備。

Can be made according to the product requires special equipment.

產品說明

適用范圍

本機適用于各種超大型卷材的分切，如30g/m2-400g/m2牛皮紙、白卡紙、淋膜紙、鋁箔、PVC塑料、錫紙等卷材的分切、復卷等。

性能及特點

1. 該機采用異步伺服電機(矢量電機)控制、自動錐度張力，中心卷取方式。主機采用變頻調速，保持加速中平衡運轉。

2. 自動計米、報警功能。收卷采用A、B氣脹軸結構，卸裝操作方便。

3. 放卷采用光電自動糾偏修正系統，使不規則材料能正常分切。

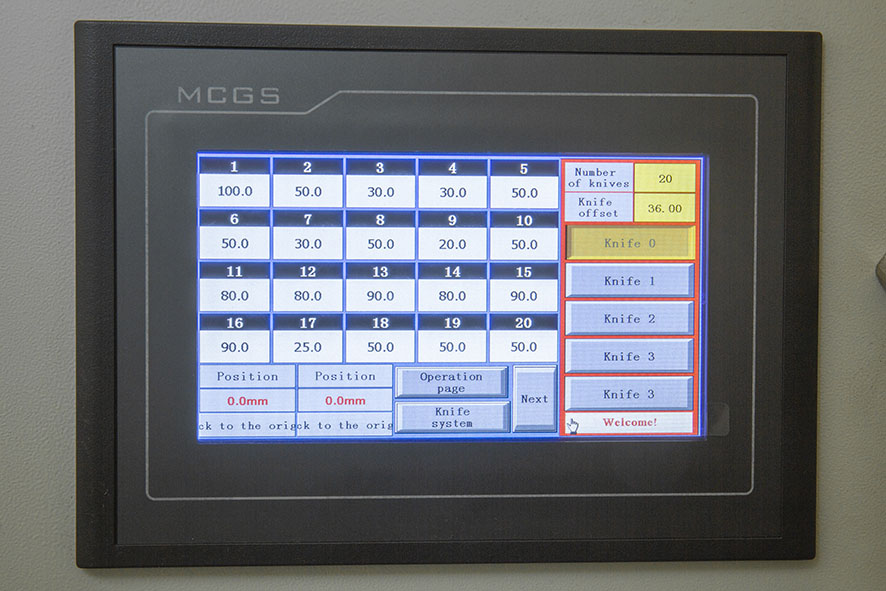

4. 自動調刀系統（輸入你需要的分切規格一次排好刀具），圓刀縱切廢邊自動排放裝置。

 5. 油壓式自動上下料，無軸裝卷。

6.導軌式自動下料裝置。

product manual

Scope of application

This machine is suitable for the slitting and rewinding of various super large coils, such as 30g/m2-400g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.

performance and characteristics

1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, and center winding mode. The host adopts frequency conversion speed regulation to maintain a balanced operation during acceleration.

2. Automatic meter counting and alarm function. The rewinding adopts A and B inflatable shaft structure, which is easy to unload and operate.

3. The unwinding adopts the photoelectric automatic correction system to make the irregular materials can be slit normally.

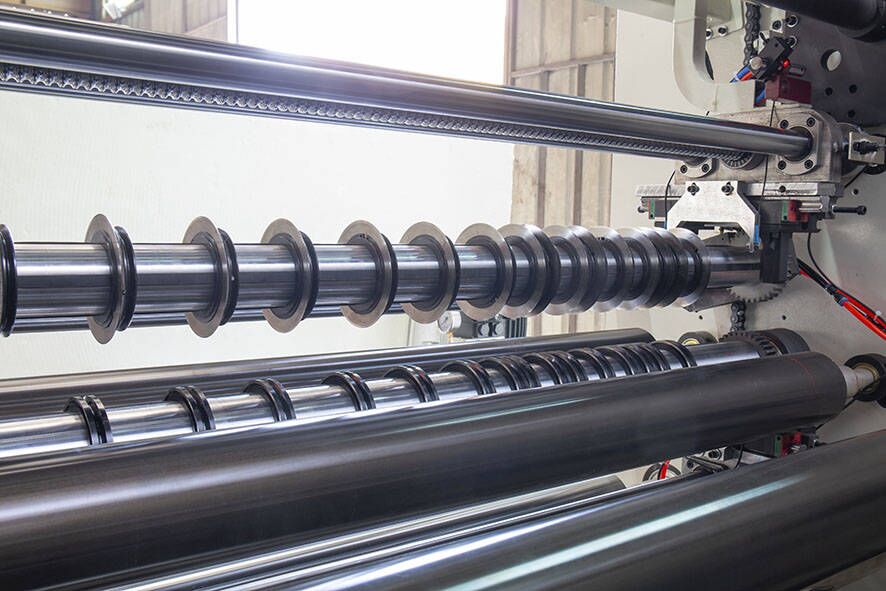

4. Automatic tool adjustment system (input the slitting specifications you need to arrange the tools at one time), and the automatic discharge device for round knife longitudinal cutting waste.

5. Hydraulic automatic loading and unloading, without shaft loading.

6. Guide rail type automatic unloading device.
